OneLink Network wire Cable Tracker/Tracer

Applicable Scope:
Telephone network line engineering, computer network wiring project, other metal conductor line engineering.

Specification:
Power: DC 9V Battery (Not included)
Max. Operating Current: Emitter less than 9mA; Receiver less than 28mA
Signal Transmission Format: Multi-frequency pulse
Signal Output Level: 8VP-P
Signal Transmission Distance: Less Than 3km
Send tone frequency: 1.5 kHz

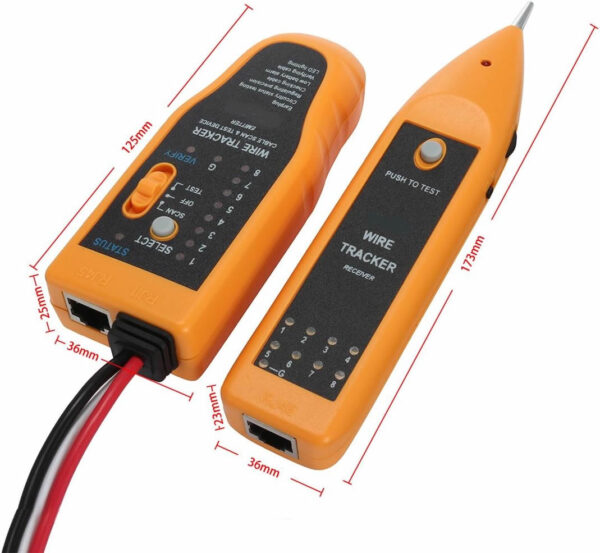

Emitter Size: 125mmx46mmx25mm/ 4.92inx1.81inx0.98in
Receiver Size: 173mmx36mmx23mm/ 6.81inx1.42inx0.91in
Features:
Judge the continuity of the cables or wire
Track the cables or wires and diagnose the break point
Receive the tone signal on the cable or wires (telephone line)
Identify the state of the working telephone line (clear, ring, busy)
Send a single solid tone or dual alternating tone to the object cables or wires
