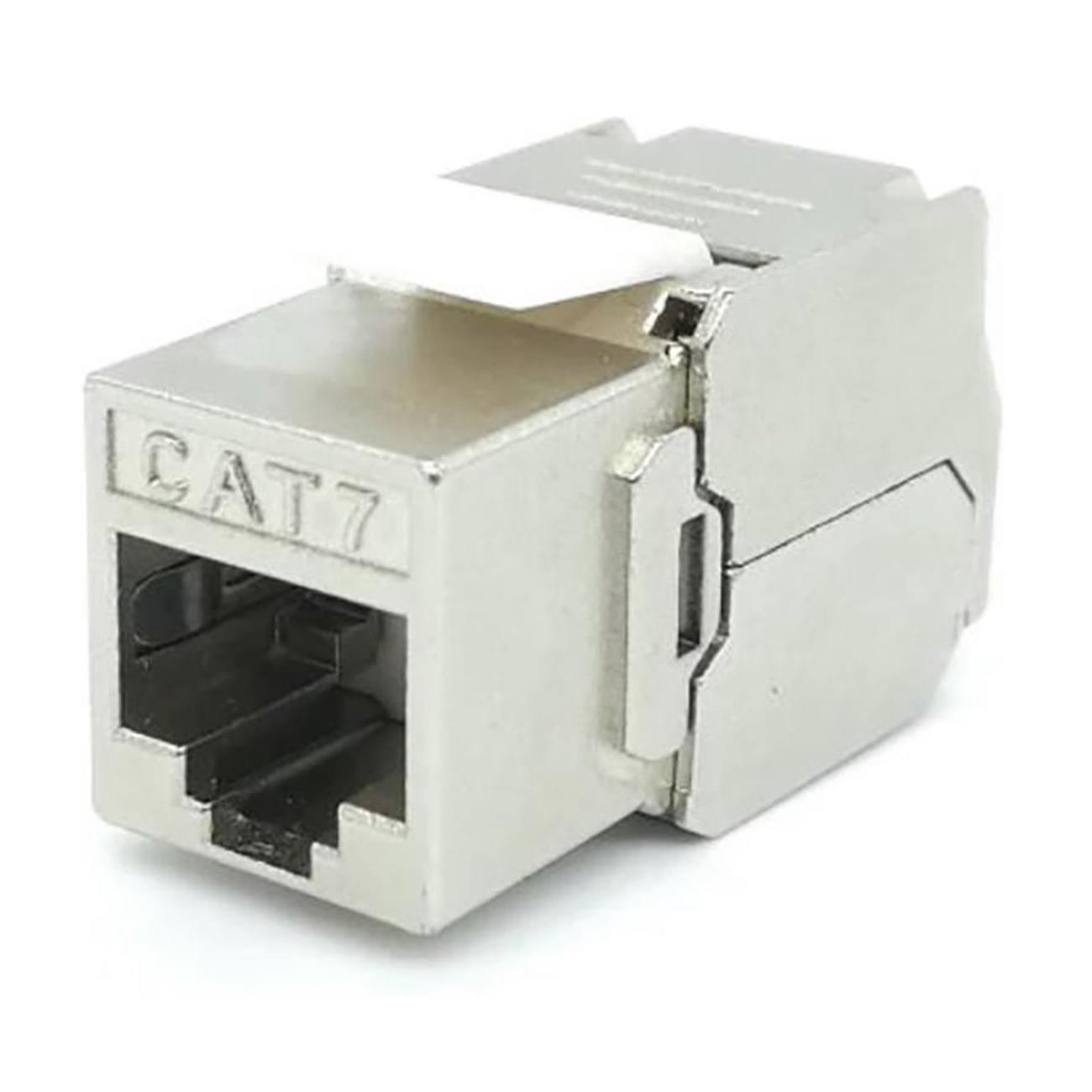

CAT7 STP Shielded Keystone Jack Toolless

850.00

OneLink Toolless   CAT7 Shielded Toolless Jack, Fluke Pass, 50U Gold Plated Pin,(5PC Bag)

10 Gig Network Solution

Cat 7 Shielded Keystone Jacks are the perfect choice for a complete Cat 7 shielded 10 Gigabit network system.

This rugged keystone jack fits patch panels or wall plates with standard keystone blanks. Compatible with 22-26 AWG solid or stranded, shielded STP/FTP cable.

The tool-free IDC termination cap is color-coded with both T568-A and T568-B wiring schemes. These keystone jacks are rated to support PoE Plus applications for connecting equipment such as a PoE IP camera or access point with power up to 30 watts.

8P8C connector with shielding for a 10 G BASE-T channel compliant network and a max signal transfer of 1200 MHz, Nickel-plated solid zinc casing and copper foil tape to suppress EMI and NEXT electromagnetic noise and crosstalk and 50 μ gold-plated contacts with dust cover to prevent oxidization for reliable and stable connections

Backwards compatible with 10MB/100MB/1000MB/10GB Ethernet CAT5E CAT6 CAT6A CAT7 to future-proof your network. PoE Plus is compliant with IEEE 802.3at Power over Ethernet (PoE+) network applications. In compliance with the ANSI/TIA/EIA 568-C.2 standard and supports T568A and T568B wiring with color-coded krone blocks
